015.32.113 | Ettinger

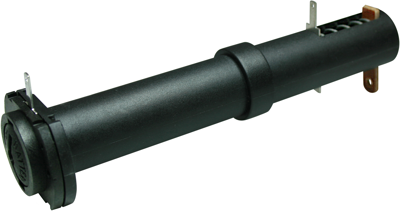

Battery compartment, 2 x AA, straight, PA 6.0 25% GV, (W x H x D) 33.3 x 24.2 x 123.5 mm, black, for mignon cells, 015.32.113
Order No.: 49H902
EAN: 4099889562477
MPN:
015.32.113
15.32.113
Unit Price (€ / pc.)
18.7901 € *
Available in 5 Days: 166 pcs. - if ordered today
Total Price:
18.79 € *
Price list
Quantity
Price per unit*
1 pcs.
18.7901 €
10 pcs.
17.6239 €
50 pcs.
16.4458 €
100 pcs.
15.2677 €
500 pcs.
14.0896 €
*incl. VAT plus shipping costs
Subject to prior sale

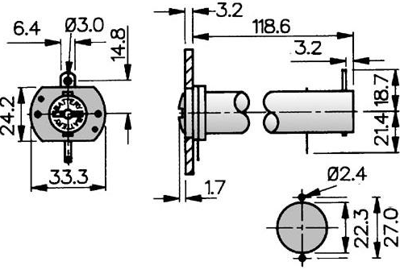

For Mignon cells (14.5 x 50.5 mm), for direct installation in front panels and housing walls. With cap, direct battery connection and independent pressure spring action without current flow.
Color: black
Housing hole: 22.3 mm diameter
Mounting length type 328: 124.2 mm
Type: 328, battery compartment for 2 Mignon cells
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | battery compartment | |
| Colour | black | |
| Depth | 123.5 mm | |
| Width | 33.3 mm | |
| Design | straight | |
| Suitable for | mignon cells | |
| Height | 24.2 mm | |
| Material | PA 6.0 25% GV | |
| Version | 2 x AA | |
| Drilling distance | 22.3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
