ET9902 | ETEK Microelectronics
OVP switch 23mΩ with OTG ET9902
Order No.: 71S0488
MPN:
ET9902
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5474 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5474 €
100 pcs.
0.4522 €
250 pcs.
0.3451 €
1000 pcs.
0.2975 €
3000 pcs.
0.2537 €
*incl. VAT plus shipping costs
Subject to prior sale
OTG Function, ET9902, ETEK Microelectronics
The ET9902 is a high voltage, high current, bidirectional switch. It provides input over-voltage and surge protection as well as reverse-blocking of output voltage. The logic control of the device is designed to interact with both the system controller and the wireless charging receiver which allows creating a dual input charger application with a single switch.
Features
- Pin-selectable over-voltage protection
- Input voltage sense output with selectable clamp
- Autonomous mode and slave mode operation
- Bi-directional status indicator and OTG enable pin
- Device enable input (active low)
Applications
- Smartphones, Tablet PC
- HDD, Storage and Solid State Memory Devices
- Portable Media Devices, Laptop & MID
- SLR Digital Cameras
- GPS and Navigation Equipment
- Industrial Handheld and Enterprise Equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|

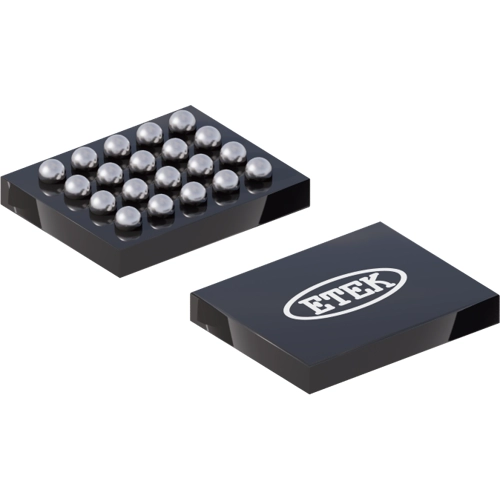

| Enclosure | WLCSP-20 | |
| Assembly | SMD | |
| Output voltage DC | 0-5.5 V | |
| Output current | 5 A | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 3 |
| Customs tariff number | 85429000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
