ET85902M | ETEK Microelectronics

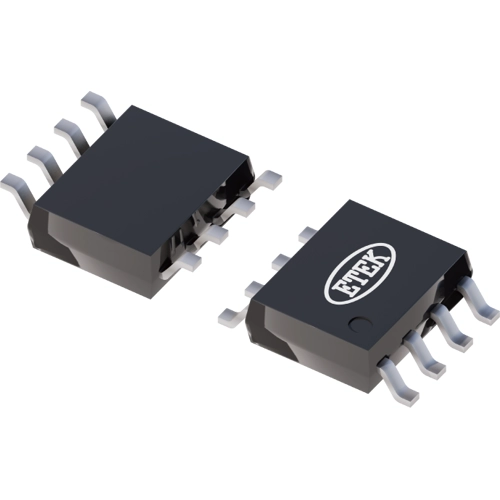

Low noise operational amplifier, SOP-8, ET85902M
NCNR (non cancelable / non returnable)
Dual Operational Amplifier, ET85902M, ETEK Microelectronics
The ET85902 is a low-noise dual operational amplifier with the ability to operate on supplies ranging from 2.7 V (±1.35 V) to 36 V (±18 V). The device is available in micro-packages and offer low offset, drift, and bandwidth with low quiescent current. Unlike most operational amplifiers, which are specified at only one supply voltage, the ET85902 is specified from 2.7 V to 36 V. Input signals beyond the supply rails do not cause phase reversal. The ET85902 is stable with capacitive loads up to 300 pF. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. This device can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.
Features
- Input Range Includes the Negative Supply
- Input Range Operates to Positive Supply with Reduced Performance
- Rail-to-Rail Output
Applications
- Tracking Amplifier in Power Modules
- Merchant power supplies
- Transducer Amplifiers
- Bridge Amplifiers
- Temperature Measurements
- Test Equipment
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOP-8 | |
| Assembly | SMD | |
| Version | low noise operational amplifier | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
