ET7429 | ETEK Microelectronics

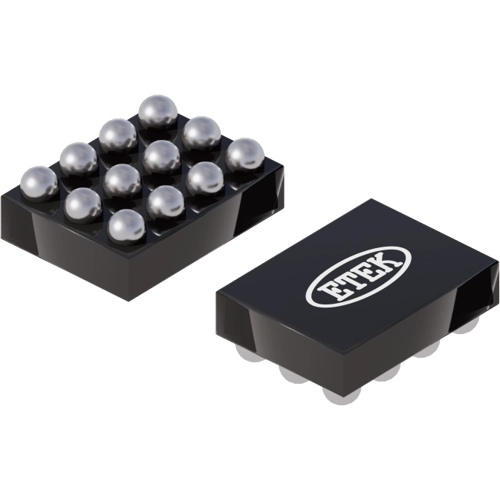

SPDT switch, with high-voltage protection, CSP-12, ETEK Microelectronics ET7429
Order No.: 71S0554
MPN:
ET7429
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5712 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5712 €
100 pcs.
0.4760 €
250 pcs.
0.3689 €
1000 pcs.
0.3213 €
3000 pcs.
0.2683 €
*incl. VAT plus shipping costs
Subject to prior sale
High-Voltage Protect USB, ET7429, ETEK Microelectronics
The ET7429 is a Hi-Speed (up to 480Mbps) USB dual SPDT switch with over-voltage protection. It operates over a 2.7V to 5.5V supply range with over-voltage fault protection up to 20V. The device features independent control bits for each switch pair and an on/off enable (EN) for shutdown mode. Additional features include low switch on resistance and capacitance along with a fault flag (FLAG) to alert the system processor to over-voltage fault events. ET7429 has low power consumption and is available in an ultra-small CSP12 1.15mm1.55mm package making it an ideal solution for USB interface switching and protection in mobile applications.
Features
- Reverse Blocking Back-to-back MOSFETs
Applications
- Smartphones
- USB Type-C
- Mobile Internet Devices
- Tablet Computers
- Peripheral
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | USB 2.0 DPDT switch | |
| Version | with high-voltage protection | |
| Enclosure | CSP-12 | |
| Assembly | SMD | |
| Data transmission rate | 480000000 mb/s | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
