ET7304 | ETEK Microelectronics

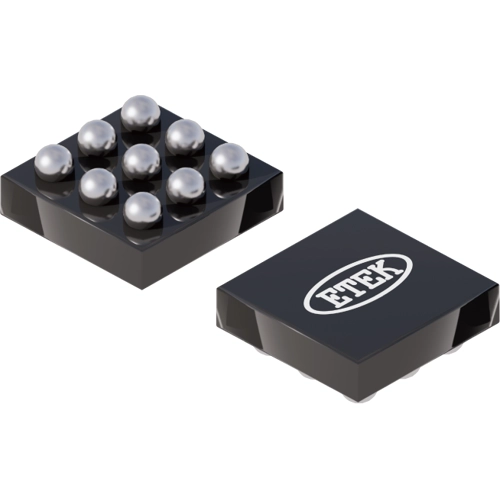

USB type-C port controller, with USB/PD, WLCSP-9, ETEK Microelectronics ET7304
Order No.: 71S0574
MPN:
ET7304
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.24 € *
Price list
Quantity
Price per unit*
10 pcs.
0.5236 €
100 pcs.
0.4403 €
250 pcs.
0.3332 €
1000 pcs.
0.2901 €
3000 pcs.
0.2462 €
*incl. VAT plus shipping costs
Subject to prior sale
USB Type-C Port Controller, ET7304, ETEK Microelectronics
The ET7304 is a USB Type-C controller that complies with the latest USB Type-C and PD standards. it integrates a complete Type-C Transceiver including the Rp and Rd resistors. It does the USB Type-C detection including attach and orientation. The ET7304 integrates the physical layer of the USB BMC power delivery protocol to allow up to 100W of power and role swap.
Features
- VCONN Provider Path with Over-Voltage Protection and Programmable Over-Current Protection
- VCONN Path with Aided Discharge
- Current Capability Definition and Detection
- Cable Recognition and Alternate Modes Support
- Dead Battery and No Battery Support
- Low-Power Mode for Attach Detection
- BIST Mode Supported
Applications
- Power Banks
- Tablets
- Notebooks
- Mobile Phones
- Monitors
- TVs
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | USB type-C port controller | |
| Version | with USB/PD | |
| Enclosure | WLCSP-9 | |
| Assembly | SMD | |
| Input voltage | 6 V | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| MSL | MSL 3 |
| Customs tariff number | 85429000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
