ET8330A | ETEK Microelectronics

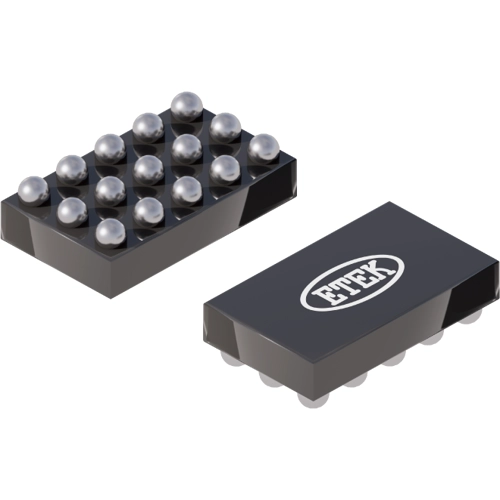

Buck converter, 0.5-1.315 V, 3 A, positive, WLCSP-15, ET8330A
Order No.: 71S0046
MPN:
ET8330A
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2935 € *
Standard delivery time from the manufacturer is: 2 Weeks
Synchronous Buck Converter, ET8330A, ETEK Microelectronics
The ET8330A is a synchronous BUCK converter with I2C interface. The output voltage and dynamic voltage scaling (DVS) slew rate can both be programmed by I2C. When the load is moderate and heavy, the converter operates in PWM mode with 2.4MHz quasi fixed frequency. In light load condition, it can work in pulse frequency modulation (PFM) mode to achieve high efficiency by setting VSEL pin to low. In PFM mode, the typical quiescent current is only about 30uA. Even with such low quiescent current, the load transient performance is still excellent, due to adaptive constant on time (ACOT) structure has been adopted in ET8330A.
Features
- Programmable Slew Rate for Dynamic Voltage Scaling (DVS)
- PFM Mode in Light Load Condition
- Excellent Load Transient Performance
- Capable of Delivering 3A Current
- Thermal Shutdown and Over Current Protection
Applications
- Application Processors
- Tablets, Notebooks, Ultra-Mobile PCs
- Smart Phones
- Handheld Devices
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | WLCSP-15 | |
| Version | programmable | |
| Number of Regulators | 1 | |
| Input voltage AC | 2.5-5.5 V | |
| Output voltage DC | 0.5-1.315 V | |
| Output current | 3 A | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
