ET551ADJY1B | ETEK Microelectronics

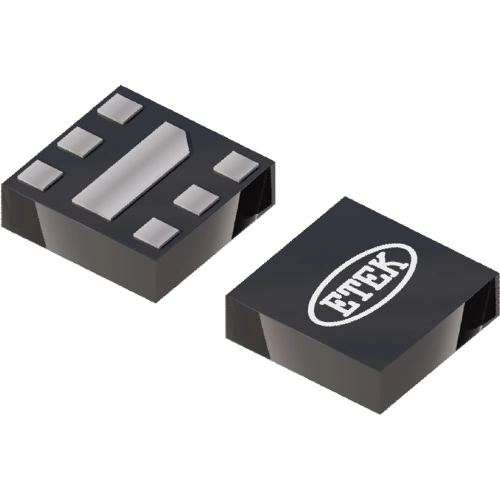

Voltage regulators, 0.8-3.6 V, 800 mA, positive, DFN-6, ET551ADJY1B
Order No.: 71S0088
MPN:
ET551ADJY1B
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1634 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1634 €
100 pcs.
0.1361 €
250 pcs.
0.1034 €
1000 pcs.
0.0898 €
3000 pcs.
0.0763 €
*incl. VAT plus shipping costs
Subject to prior sale
Dual-Rail, ET551ADJY1B, ETEK Microelectronics
The ET551ADJY1B is a CMOS-based low-dropout, low-power linear regulators, offering 800mA with NMOS pass transistor and a separate bias supply voltage (VBIAS) . The device provides very stable, accurate output voltage with low noise, high ripple rejection and low supply current suitable for space constrained, noise sensitive application. The ET551ADJY1B series consist of an accurate voltage-reference block, an error amplifier, a thermal-shutdown circuit, and a current limit circuit.
Features
- Built-in Over Current Protection and Thermal Shutdown circuit
- Built-in Auto-discharging Circuit (optional)
- Built-in Under Voltage Lock-out
Applications
- Constant-voltage power supply for battery-powered device
- Constant-voltage power supply for smartphones, tablets
- Constant-voltage power supply for cameras, DVRs, STB and camcorders
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Enclosure | DFN-6 | |
| Version | adjustable | |
| Number of Regulators | 1 | |
| Input voltage AC | 0.8-5.5 V | |
| Output voltage DC | 0.8-3.6 V | |
| Output current | 800 mA | |
| Polarity | positive | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85429000 |
| MSL | MSL 3 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
