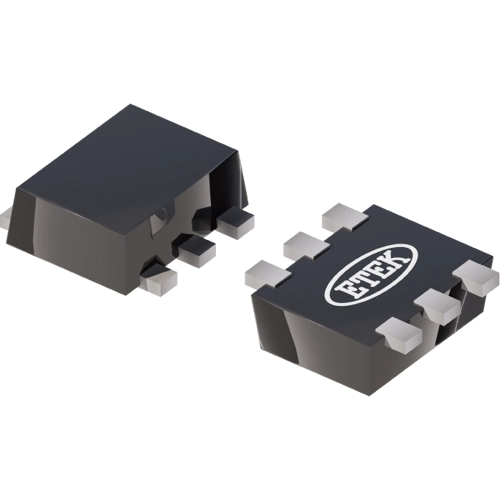

ET81413 | ETEK Microelectronics
Step-down regulator 4A, sync., 4.5–17V
Order No.: 71S0526
MPN:
ET81413
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.2975 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
2.97 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2975 €
100 pcs.
0.2514 €
250 pcs.
0.1911 €
1000 pcs.
0.1659 €
3000 pcs.
0.1408 €
*incl. VAT plus shipping costs
Subject to prior sale
Step-Down Regukator, ET81413, ETEK Microelectronics
The ET81413 is a high-efficiency synchronous step-down DC-DC converter with ACOT control architecture. It provides 4A continuous output current with excellent transient response and high efficiency. The device is optimized to operate with minimum external component counts and also optimized to achieve low standby current.This convertor adopts adaptive constant-on-time (ACOT) structure, and provides a fast transient response. It also supports both low-equivalent series resistance (ESR) output capacitors and ultra-low ESR ceramic capacitors with no external compensation components.
Features
- ACOT mode control with fast transient response
- PFM mode during light load operation
- Start-up from Pre-Biased Output Voltage
- Cycle-by-Cycle Over-current Limit
- Hiccup-mode Over-current Protection
- Non-Latch UVP and TSD Protections
Applications
- Digital TV Power Supply and Surveillance
- Disc Players
- Networking Home Terminal
- Digital Set Top Box
Download
Logistics
| Property | Value |
|---|---|
| MSL | MSL 3 |
| Country of origin | CN |
| Customs tariff number | 85429000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
