10178188 | ESSENTRA COMPONENTS

Bushing fastening screw Richco VGS-6

Order No.: 12H3794
EAN: 4099889504828
MPN:
10178188
VGS-6
Series: VGS

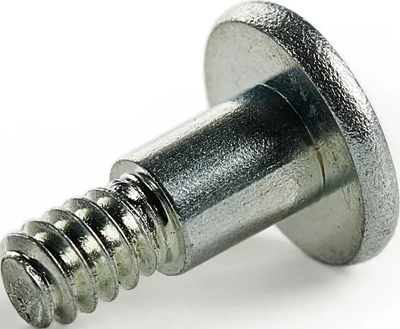

10178188 ESSENTRA COMPONENTS Vibration Damper Image 1

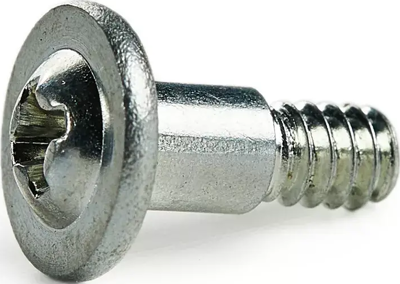

10178188 ESSENTRA COMPONENTS Vibration Damper Image 2
10178188 ESSENTRA COMPONENTS Vibration Damper Image 3
10178188 ESSENTRA COMPONENTS Vibration Damper Image 4
10178188 ESSENTRA COMPONENTS Vibration Damper Image 5
Image may differ
Unit Price (€ / pc.)
0.1607 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
160.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.1607 €

Bushing mounting screws, type Essentra Components/Richco VGS.

For mounting vibration damping bushings type Richco VG-1 to VG-5; Thread: M 3 x 0.5, 5.1 mm long. Material: galvanized steel.

Technical attributes (type, for bushing type, washer diameter (A), screw head diameter (B), shaft diameter (C), shaft length (D), washer thickness (E)): VGS-6, VG-5, A 8.9, B 5.5, C 3.7, D 5.0, E 1.3 mm

Technical specifications
Filter Property Value
Length 12.45 mm
Type of mounting M3
Shaft Diameter 3.7 mm
Thread size M3
Height 3.7 mm
Version grommet fixing screw
Screw head diameter 5.5 mm
Material steel
For grommet type VG-5
Disc diameter 8.9 mm
Shaft length 5 mm
Colour black
Logistics
Property Value
Country of origin TW
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
