10178164 | ESSENTRA COMPONENTS

Bushing fastening screw Richco VGS-4

Order No.: 12H3790
EAN: 4099889504811
MPN:
10178164
VGS-4
Series: VGS

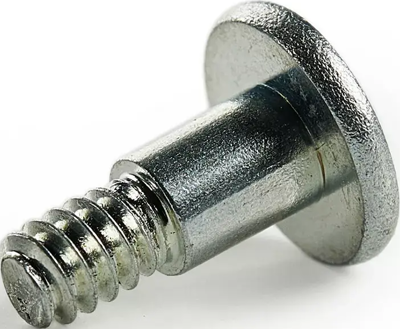

10178164 ESSENTRA COMPONENTS Vibration Damper Image 1

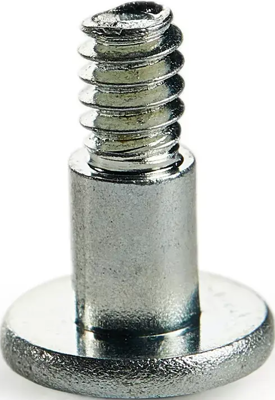

10178164 ESSENTRA COMPONENTS Vibration Damper Image 2

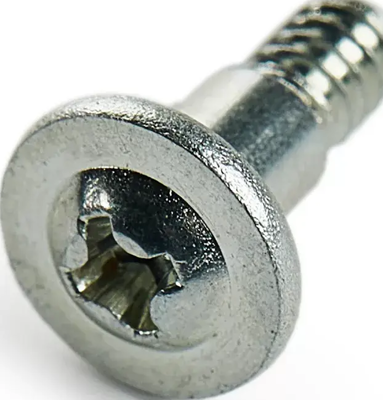

10178164 ESSENTRA COMPONENTS Vibration Damper Image 3

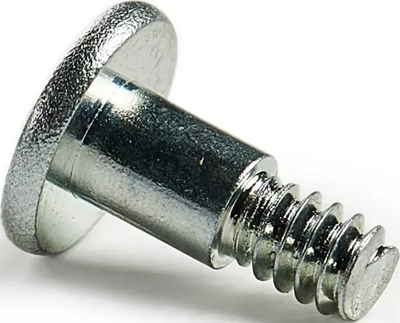

10178164 ESSENTRA COMPONENTS Vibration Damper Image 4

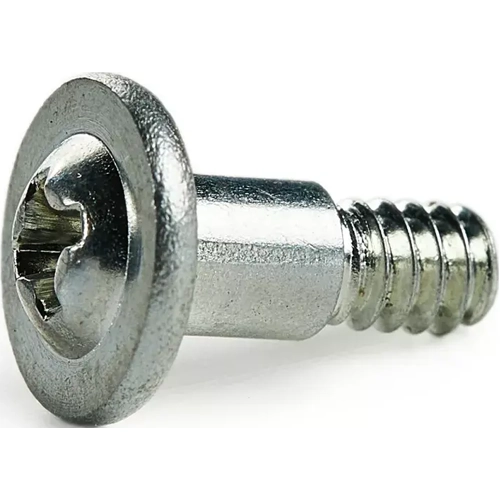

10178164 ESSENTRA COMPONENTS Vibration Damper Image 5
Image may differ
Unit Price (€ / pc.)
0.2332 € *
Available: 4 pcs.
Total Price:
0.23 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2332 €
10 pcs.
0.2142 €
100 pcs.
0.2023 €
500 pcs.
0.1892 €
1000 pcs.
0.1761 €
*incl. VAT plus shipping costs
Subject to prior sale

Bushing mounting screws, type Essentra Components/Richco VGS.

For mounting vibration damping bushings type Richco VG-1 to VG-5; Thread: M 3 x 0.5, 5.1 mm long. Material: galvanized steel.

Technical attributes (type, for bushing type, washer diameter (A), screw head diameter (B), shaft diameter (C), shaft length (D), washer thickness (E)): VGS-4, VG-1 and VG-3, A 8.9, B 5.5, C 4.1, D 5.2, E 1.3 mm

Technical specifications
Filter Property Value
Length 12.7 mm
Type of mounting M3
Shaft Diameter 4.1 mm
Thread size M3
Height 3.7 mm
Version grommet fixing screw
Screw head diameter 5.5 mm
Material steel
For grommet type VG-1, VG-3
Panel thickness 1.09 mm
Disc diameter 8.9 mm
Shaft length 5.2 mm
Colour black
Logistics
Property Value
Country of origin TW
Customs tariff number 39269097
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
