10178102 | ESSENTRA COMPONENTS
Bushing Richco VG-2
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3689 €
100 pcs.
0.2951 €
1000 pcs.
0.2511 €
5000 pcs.
0.2213 €
*incl. VAT plus shipping costs
Subject to prior sale

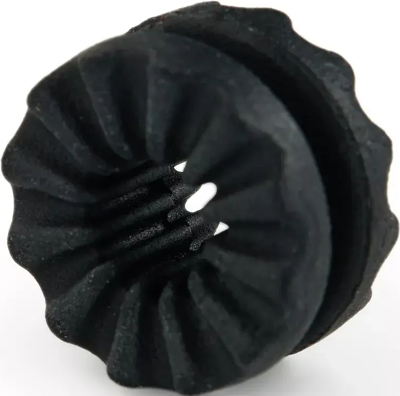

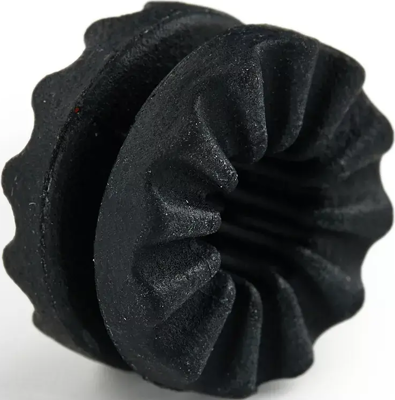

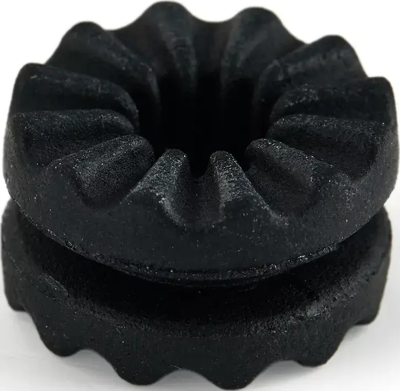

Anti-vibration bushings, type Essentra Components/Richco VG.
For damping vibration on installed components such as fans, motors, drives, etc; Material: Neoprene (RMS-190). Color: black.
Technical attributes (type, panel thickness, panel hole diameter, bushing outer diameter (A), bushing inner diameter (B), bushing thickness (D), bushing collar thickness (C)): VG-2, 1.6, 9.53, A 14.4, B 4.8, D 8.2, C 3.3 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grommet edge thickness | 3.3 mm | |
| Height | 8.2 mm | |
| Hole diameter | 9.53 mm | |
| Material | neoprene | |
| Panel thickness | 1.6 mm | |
| Version | anti-vibration grommet | |
| Colour | black | |
| Outer diameter | 14.4 mm | |
| Inner diameter | 4.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 39269097 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
