10178096 | ESSENTRA COMPONENTS

Bushing Richco VG-1

Order No.: 12H3780
EAN: 4099889504798
MPN:
10178096
VG-1
Series: VG

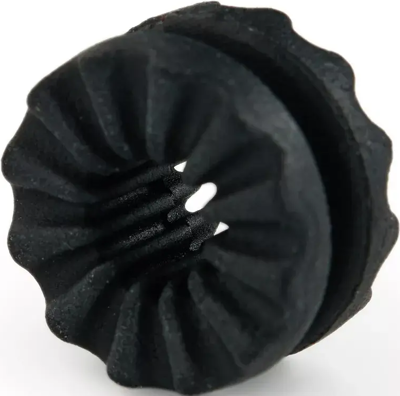

10178096 ESSENTRA COMPONENTS Vibration Damper Image 1

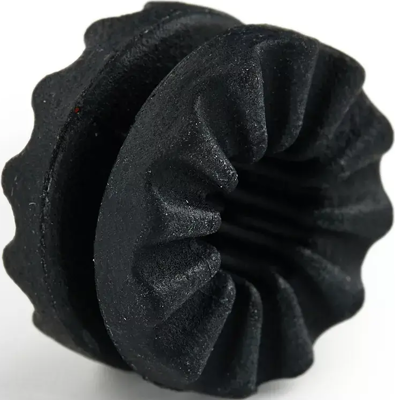

10178096 ESSENTRA COMPONENTS Vibration Damper Image 2

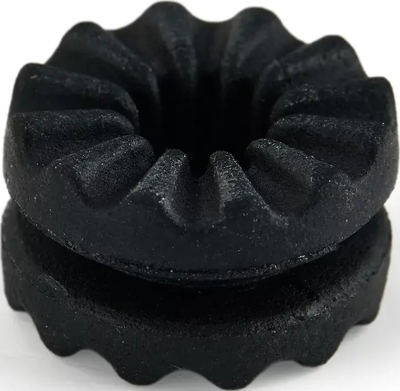

10178096 ESSENTRA COMPONENTS Vibration Damper Image 3
Image may differ
Unit Price (€ / pc.)
0.2642 € *
Available: 9,575 pcs.
Total Price:
0.26 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2642 €
10 pcs.
0.2356 €
100 pcs.
0.1880 €
1000 pcs.
0.1607 €
5000 pcs.
0.1416 €
*incl. VAT plus shipping costs
Subject to prior sale

Anti-vibration bushings, type Essentra Components/Richco VG.

For damping vibration on installed components such as fans, motors, drives, etc; Material: Neoprene (RMS-190). Color: black.

Technical attributes (type, panel thickness, panel hole diameter, bushing outer diameter (A), bushing inner diameter (B), bushing thickness (D), bushing collar thickness (C)): VG-1, 1.45, 6.35, A 9.7, B 4, D 5.9, C 2.2 mm

Technical specifications
Filter Property Value
Material neoprene
Version anti-vibration grommet
Panel thickness 1.45 mm
Height 5.9 mm
Inner diameter 4 mm
Grommet edge thickness 2.2 mm
Outer diameter 9.7 mm
Colour black
Hole diameter 6.35 mm
Logistics
Property Value
Customs tariff number 39269097
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
