10432563 | ESSENTRA COMPONENTS
Hexagon spacer bolt, external/internal thread, M2.5, 8 mm, brass, 10432563
Unit Price (€ / pc.)
0.2701 € *
Standard delivery time from the manufacturer is: 15 Weeks

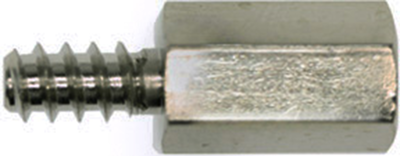

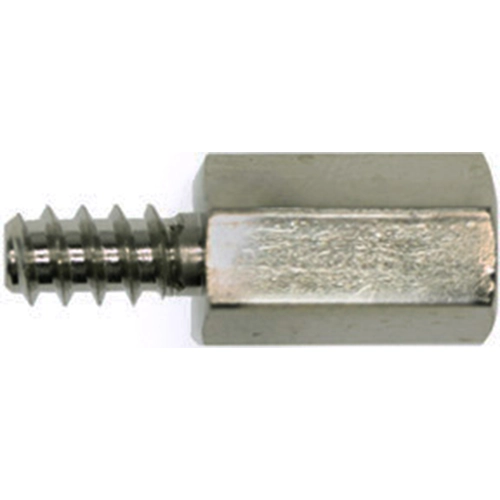

Self-tapping hexagonal spacer bolts, nickel-plated brass, type Essentra Components/Richco HTSBG.
With undercut, suitable for plastic applications.
Self-tapping hexagonal spacer bolts, inner thread M 2.5 (width across flats 5.0 mm), type HTSBG-ST2.2.

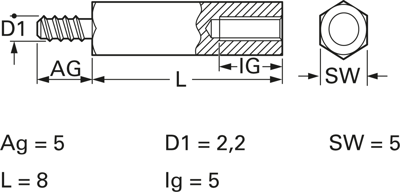

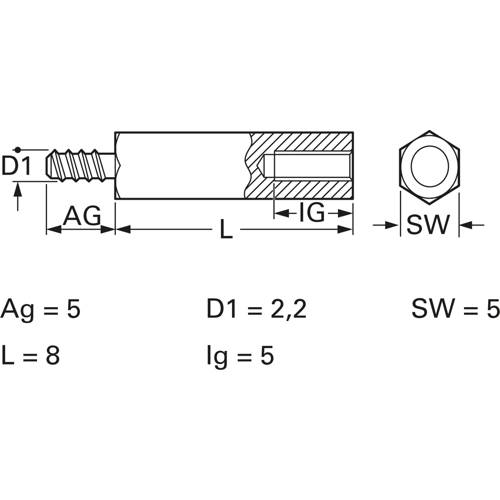

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Internal thread length | 5 mm | |
| spanner size | 5 mm | |
| External thread length | 5 mm | |
| Length | 13 mm | |
| Colour | silver | |
| Outer diameter | 2.2 mm | |
| Material | brass | |
| Thread size | M2.5 | |
| Design | hexagon | |
| Inner diameter | 2.5 mm | |
| Product type | spacer bolt | |
| Version | external/internal thread | |
| Bolt length | 8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 74153300 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
