10016770 | ESSENTRA COMPONENTS

Spacer bolt, external thread/locking, M4/Ø 4 mm, 12.7 mm, PA, 10016770

Order No.: 17H9930
EAN: 4099889464689
MPN:
10016770
MSCBS-8-01
Series: MSCBS

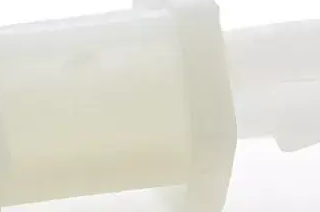

10016770 ESSENTRA COMPONENTS Spacer Bolts Image 1

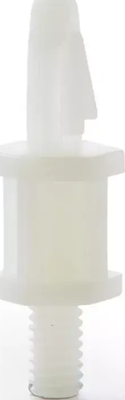

10016770 ESSENTRA COMPONENTS Spacer Bolts Image 2

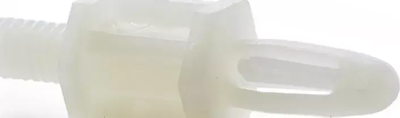

10016770 ESSENTRA COMPONENTS Spacer Bolts Image 3

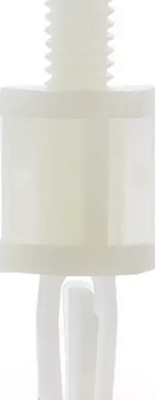

10016770 ESSENTRA COMPONENTS Spacer Bolts Image 4
10016770 ESSENTRA COMPONENTS Spacer Bolts Image 5
Image may differ
Unit Price (€ / pc.)
0.4879 € *
Available: 1,079 pcs.
Total Price:
0.49 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4879 €
10 pcs.
0.4284 €
100 pcs.
0.3689 €
1000 pcs.
0.2749 €
5000 pcs.
0.2202 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB spacers, type 337-../MSCBS-.

Chassis side: with M 4 x 6.4 mm threaded bolt. PCB side with snap-on fastener for 1.6-mm PCBs. PCB hole: 4.0 mm diameter. Material: PA 6.6, plain-colored. Delivered without nut.

Technical attributes (type, distance in mm (A)): MSCBS–8–01, A 12.7 mm

Technical specifications
Filter Property Value
spanner size 8 mm
External thread length 6.4 mm
Length 29.3 mm
Colour natural
Material PA
Thread size M4/Ø 4 mm
Product type spacer bolt
Version external thread/locking
Bolt length 12.7 mm
Logistics
Property Value
Customs tariff number 39269097
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
