10016732 | ESSENTRA COMPONENTS

Spacer bolt, external thread/locking, M4/Ø 4 mm, 6.4 mm, PA, 10016732

Order No.: 17H9940
EAN: 4099889464726
MPN:
10016732
MSCBS-4-01
Series: MSCBS

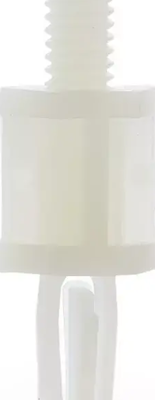

10016732 ESSENTRA COMPONENTS Spacer Bolts Image 1

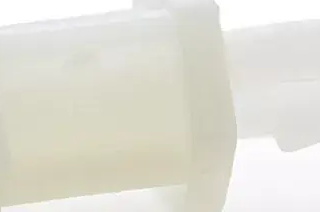

10016732 ESSENTRA COMPONENTS Spacer Bolts Image 2

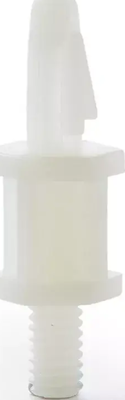

10016732 ESSENTRA COMPONENTS Spacer Bolts Image 3
10016732 ESSENTRA COMPONENTS Spacer Bolts Image 4

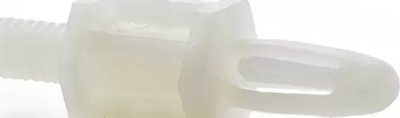

10016732 ESSENTRA COMPONENTS Spacer Bolts Image 5
Image may differ
Unit Price (€ / pc.)
0.2142 € *
Available: 10,237 pcs.
Total Price:
0.21 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2142 €
10 pcs.
0.1761 €
100 pcs.
0.1499 €
1000 pcs.
0.1154 €
5000 pcs.
0.0928 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB spacers, type 337-../MSCBS-.

Chassis side: with M 4 x 6.4 mm threaded bolt. PCB side with snap-on fastener for 1.6-mm PCBs. PCB hole: 4.0 mm diameter. Material: PA 6.6, plain-colored. Delivered without nut.

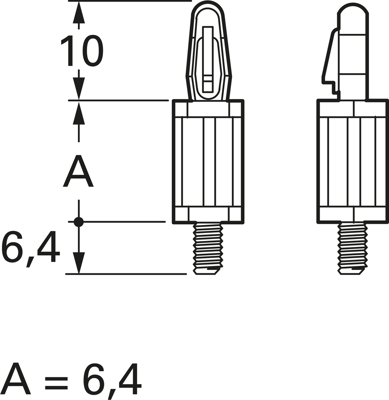

Technical attributes (type, distance in mm (A)): 337–7193–000, A 6.4 mm

Technical specifications
Filter Property Value
Bolt length 6.4 mm
Material PA
spanner size 8 mm
Version external thread/locking
Thread size M4/Ø 4 mm
Product type spacer bolt
External thread length 6.4 mm
Colour natural
Length 23 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39269097
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
