10016695 | ESSENTRA COMPONENTS

Spacer bolt, external thread/locking, M4/Ø 4 mm, 25.4 mm, PA, 10016695

Order No.: 17H9934
EAN: 4099889464702
MPN:
10016695
MSCBS-16-01
Series: MSCBS
10016695 ESSENTRA COMPONENTS Spacer Bolts Image 1

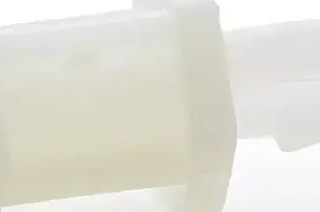

10016695 ESSENTRA COMPONENTS Spacer Bolts Image 2

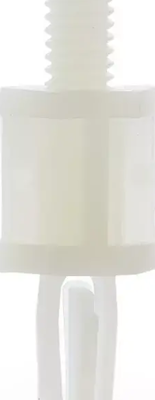

10016695 ESSENTRA COMPONENTS Spacer Bolts Image 3

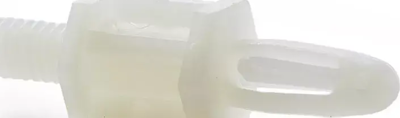

10016695 ESSENTRA COMPONENTS Spacer Bolts Image 4

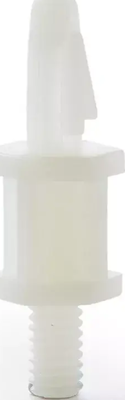

10016695 ESSENTRA COMPONENTS Spacer Bolts Image 5
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
880.60 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.8806 €
5000 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB spacers, type 337-../MSCBS-.

Chassis side: with M 4 x 6.4 mm threaded bolt. PCB side with snap-on fastener for 1.6-mm PCBs. PCB hole: 4.0 mm diameter. Material: PA 6.6, plain-colored. Delivered without nut.

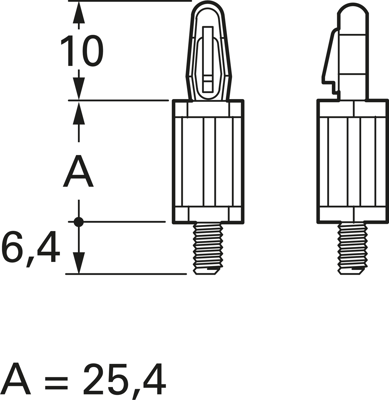

Technical attributes (type, distance in mm (A)): MSCBS–16–01, A 25.4 mm

Technical specifications
Filter Property Value
spanner size 8 mm
External thread length 6.4 mm
Length 42 mm
Colour natural
Material PA
Thread size M4/Ø 4 mm
Product type spacer bolt
Version external thread/locking
Bolt length 25.4 mm
Logistics
Property Value
Customs tariff number 39269097
Country of origin GB
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
