10016633 | ESSENTRA COMPONENTS

Spacer bolt, external thread/locking, M4/Ø 4 mm, 15.9 mm, PA, 10016633

Order No.: 17H9931
EAN: 4099889464696
MPN:
10016633
MSCBS-10-01
Series: MSCBS

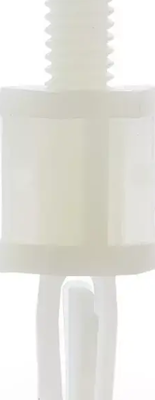

10016633 ESSENTRA COMPONENTS Spacer Bolts Image 1

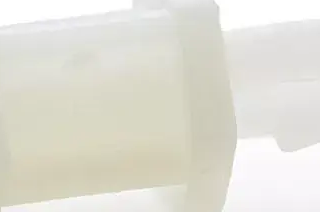

10016633 ESSENTRA COMPONENTS Spacer Bolts Image 2
10016633 ESSENTRA COMPONENTS Spacer Bolts Image 3

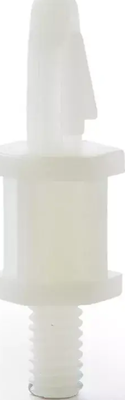

10016633 ESSENTRA COMPONENTS Spacer Bolts Image 4

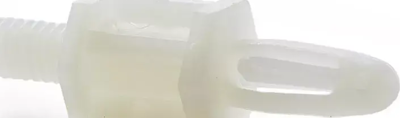

10016633 ESSENTRA COMPONENTS Spacer Bolts Image 5
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Available: 660 pcs.
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4046 €
100 pcs.
0.3451 €
1000 pcs.
0.2618 €
5000 pcs.
0.2106 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB spacers, type 337-../MSCBS-.

Chassis side: with M 4 x 6.4 mm threaded bolt. PCB side with snap-on fastener for 1.6-mm PCBs. PCB hole: 4.0 mm diameter. Material: PA 6.6, plain-colored. Delivered without nut.

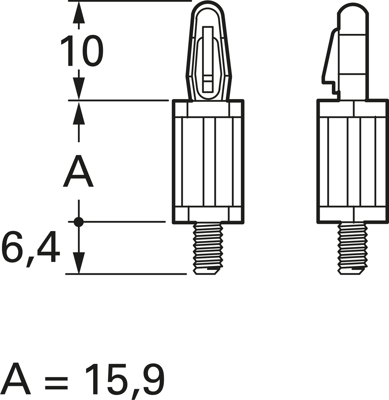

Technical attributes (type, distance in mm (A)): MSCBS–10–01, A 15.9 mm

Technical specifications
Filter Property Value
Material PA
Thread size M4/Ø 4 mm
Product type spacer bolt
Length 32.5 mm
Bolt length 15.9 mm
spanner size 8 mm
External thread length 6.4 mm
Colour natural
Version external thread/locking
Logistics
Property Value
Customs tariff number 39269097
Country of origin GB
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
