BATT03.0550.500 | ESKA Erich Schweizer
NH fuse NH3, 500 A, 550 V (DC), 30 kA breaking capacity, BATT03.0550.500
Unit Price (€ / pc.)
121.8917 € *
Available: 2 pcs.
Total Price:
121.89 € *
Price list
Quantity
Price per unit*
1 pcs.
121.8917 €
3 pcs.
118.2384 €
10 pcs.
114.1805 €
25 pcs.
111.1222 €
100 pcs.
106.2432 €
*incl. VAT plus shipping costs
Subject to prior sale

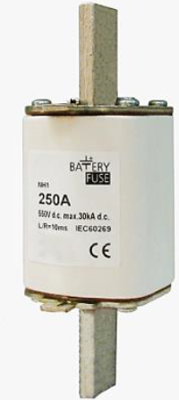

Battery fuse, BATT03.0550.500, ESKA Erich Schweizer
Battery fuse, 550 V, Ceramic casing, rectangular, Metal-Contact blade, Breaking capacity: 30000 A.
Applications
- Battery storage-/UPS-Systems
- E-mobility
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 30 kA | |
| Height | 65 mm | |
| Rated voltage (DC) | 550 V | |
| Design | NH3 | |
| Rated current | 500 A | |
| Enclosure | ceramic tube | |
| Length | 74 mm | |
| Width | 64 mm | |
| Version | NH fuse |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85361090 |
| Country of origin | SI |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
