522726 | ESKA Erich Schweizer

Microfuse 5 x 20 mm, 8 A, T, 250 V (AC), 1.5 kA breaking capacity, 522726

Order No.: 42G1586
EAN: 4099889084269
MPN:
522726
522.726
Series: 522.700

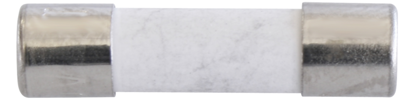

522726 ESKA Erich Schweizer Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.2035 € *
Available: 150 pcs.
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2035 €
50 pcs.
0.1892 €
100 pcs.
0.1725 €
500 pcs.
0.1583 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro fuse, 522726, ESKA

The 522726 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • Material ceramic tube with extinguishing agent
  • High rated voltage
  • High breaking capacity
  • Contact caps Brass, nickel plated
Technical specifications
Filter Property Value
Rated current 8 A
Tripping characteristics T
diameter 5 mm
Version microfuse
Enclosure ceramic tube
Rated voltage (AC) 250 V
Breaking capacity 1.5 kA
Design 5 x 20 mm
Length 20 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85361010
Original Packaging Carton with 10 pieces
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
