522722 | ESKA Erich Schweizer
Microfuse 5 x 20 mm, 3.15 A, T, 250 V (AC), 1.5 kA breaking capacity, 522722
Unit Price (€ / pc.)
0.2035 € *
Next delivery: 570 pcs. on 2025-11-28
Total Price:
2.03 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2035 €
50 pcs.
0.1892 €
100 pcs.
0.1725 €
500 pcs.
0.1583 €
*incl. VAT plus shipping costs
Subject to prior sale

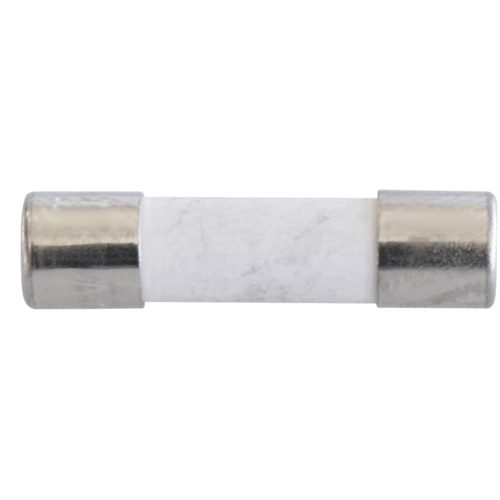

Micro fuse, 522722, ESKA
The 522722 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Material ceramic tube with extinguishing agent
- High rated voltage
- High breaking capacity
- Contact caps Brass, nickel plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| diameter | 5 mm | |
| Design | 5 x 20 mm | |
| Rated voltage (AC) | 250 V | |
| Rated current | 3.15 A | |
| Tripping characteristics | T | |
| Breaking capacity | 1.5 kA | |
| Enclosure | ceramic tube | |
| Length | 20 mm | |
| Version | microfuse |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Original Packaging | Carton with 10 pieces |
| Customs tariff number | 85361010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
