520513 | ESKA Erich Schweizer

Microfuse 5 x 20 mm, 400 mA, F, 250 V (AC), 1.5 kA breaking capacity, 520513

Order No.: 42G1510
EAN: 4099889083910
MPN:
520513
520.513
Series: 520.500
520513 ESKA Erich Schweizer Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.2761 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
2.76 € *
Price list
Quantity
Price per unit*
10 pcs.
0.2761 €
50 pcs.
0.2547 €
100 pcs.
0.2344 €
500 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

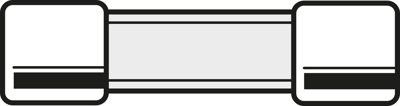

Micro fuse, 520513, ESKA

The 520513 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material ceramic tube with extinguishing agent
  • High rated voltage
  • High breaking capacity
  • Contact caps Brass, nickel plated
Technical specifications
Tripping characteristics F
Version microfuse
diameter 5 mm
Length 20 mm
Breaking capacity 1.5 kA
Rated current 400 mA
Rated voltage (AC) 250 V
Enclosure ceramic tube
Design 5 x 20 mm
Logistics
Customs tariff number 85361010
Country of origin DE
Original Packaging Carton with 10 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
