520511 | ESKA Erich Schweizer
Microfuse 5 x 20 mm, 250 mA, F, 250 V (AC), 1.5 kA breaking capacity, 520511
Unit Price (€ / pc.)
0.2344 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2344 €
500 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

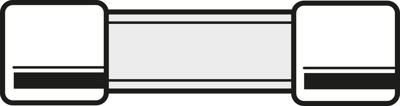

Micro fuse, 520511, ESKA
The 520511 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Material ceramic tube with extinguishing agent
- High rated voltage
- High breaking capacity
- Contact caps Brass, nickel plated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Rated voltage (AC) | 250 V | |
| Enclosure | ceramic tube | |
| Length | 20 mm | |
| Design | 5 x 20 mm | |
| Breaking capacity | 1.5 kA | |
| diameter | 5 mm | |
| Version | microfuse | |
| Rated current | 250 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
