520510 | ESKA Erich Schweizer

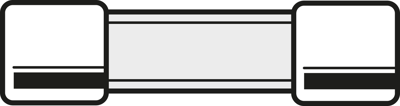

Microfuse 5 x 20 mm, 200 mA, F, 250 V (AC), 1.5 kA breaking capacity, 520510

Order No.: 42G1504
EAN: 4099889083866
MPN:
520510
520.510
Series: 520.500
520510 ESKA Erich Schweizer Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.2344 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
23.44 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2344 €
500 pcs.
0.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

Micro fuse, 520510, ESKA

The 520510 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • Material ceramic tube with extinguishing agent
  • High rated voltage
  • High breaking capacity
  • Contact caps Brass, nickel plated
Technical specifications
Rated voltage (AC) 250 V
Length 20 mm
Breaking capacity 1.5 kA
diameter 5 mm
Version microfuse
Rated current 200 mA
Tripping characteristics F
Enclosure ceramic tube
Design 5 x 20 mm
Logistics
Original Packaging Carton with 10 pieces
Customs tariff number 85361010
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
