1038614 | ESKA Erich Schweizer
Microfuse 10.3 x 38 mm, 500 mA, F, 500 V (AC), 120 kA breaking capacity, 1038614
Unit Price (€ / pc.)
1.2019 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2019 €
50 pcs.
1.1424 €
100 pcs.
1.0710 €
500 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale

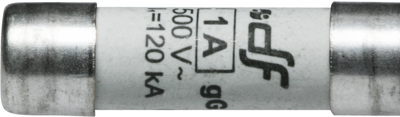

Micro fuse, 1038614, ESKA
The 1038614 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.
Features
- Low rated current
- High rated voltage
- High breaking capacity
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Tripping characteristics | F | |
| Design | 10.3 x 38 mm | |
| Breaking capacity | 120 kA | |
| Version | microfuse | |
| Rated voltage (AC) | 500 V | |
| Rated current | 500 mA | |
| Length | 38 mm | |
| diameter | 10.3 mm | |
| Enclosure | ceramic tube |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85361010 |
| Original Packaging | Carton with 10 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
