EP0701041 | ESD PROTECT

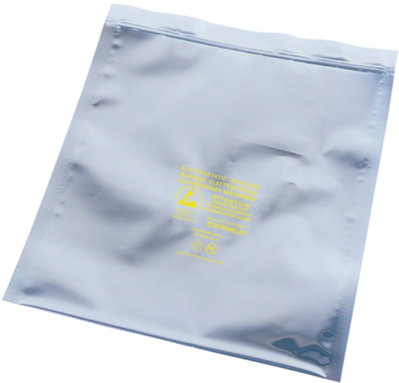

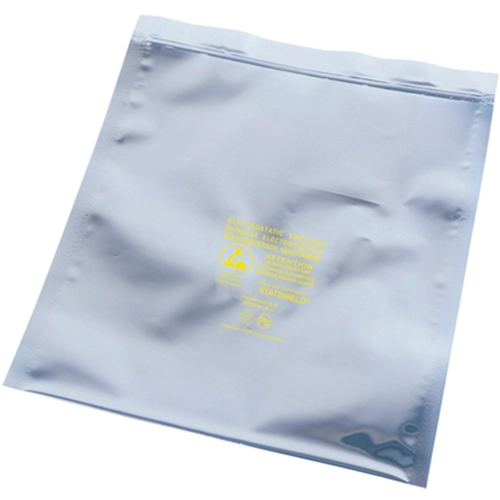

ESD protective bag, (L x W) 305 x 255 mm, metallized inside, zipp, EP0701041
Order No.: 19L2882
EAN: 4099891438623
MPN:
EP0701041
Unit Price (€ / pck.)
35.0693 € *
Available: 1 pck.
Shielding bags, inner metalization, reusable, type Charleswater Metal In.
With ESD warning symbol, high degree of shielding against field induction, minimum triboelectric charge, controlled discharge without spontaneous discharge; Electrostatic shielding: min. 10 nJ (Energy Test) ESD. Structure: multilayer, transparent, lead-free. Imprint: ESD warning symbol. Standards: EN61340-5-1, ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, EIA-625, MILHDBK-263, MIL-STD-1686, and EIA-583. Outer layer: electrically conductive polyester. Metalization: steam vapor aluminum. Inner layer: electrically conductive polyethylene. Surface resistance: 10^10 to 10^11 ohm.
Technical attributes (type, dimensions): 23.0.90616, 255 x 305 mm
Technical specifications
| Lock type | zipp | |
| Version | metallized inside | |
| Length | 305 mm | |
| Width | 255 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39232100 |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
