EP0701015 | ESD PROTECT
Shielding bag, 255 x 610 mm, inner metalization, weldable, 23.0.90520
Order No.: 19L2900
EAN: 4099891438746
MPN:
EP0701015
Unit Price (€ / pck.)
56.1323 € *
Available: 0 pck.
Leadtime: On Request **
Total Price:
56.13 € *
Price list
Quantity
Price per unit*
1 pck.
56.1323 €
5 pck.
53.3001 €
*incl. VAT plus shipping costs
**Subject to prior sale

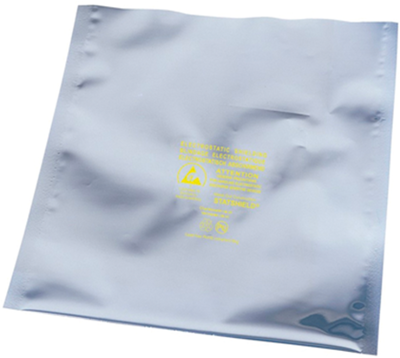

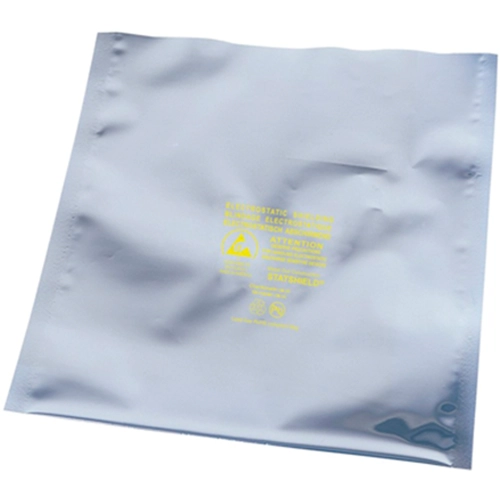

Shielding bags with inner metalization, weldable, type Charleswater Metal In.
With ESD warning symbol, high degree of shielding against field induction, minimum triboelectric charge, controlled discharge without spontaneous discharge; Electrostatic shielding: min. 10 nJ (Energy Test) ESD. Structure: multilayer, transparent, lead-free. Imprint: ESD warning symbol. Standards: EN61340-5-1, ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, EIA-625, MILHDBK-263, MIL-STD-1686, and EIA-583. Outer layer: electrically conductive polyester. Metalization: steam vapor aluminum. Inner layer: electrically conductive polyethylene. Surface resistance: 10^10 to 10^11 ohm.
Technical attributes (type, dimensions): 23.0.90520, 255 x 610 mm
Technical specifications
| Width | 254 mm | |
| Length | 609 mm | |
| Lock type | weldable |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39232100 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
