EP0701009 | ESD PROTECT

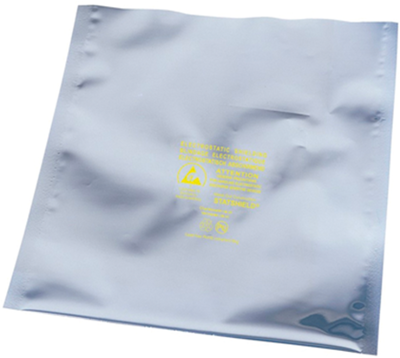

Shielding bag, 150 x 255 mm, inner metalization, weldable, 23.0.90508
Order No.: 19L2895
EAN: 4099891438708
MPN:
EP0701009
Unit Price (€ / pck.)
22.7171 € *
Available: 0 pck.
Leadtime: On Request **
Shielding bags with inner metalization, weldable, type Charleswater Metal In.
With ESD warning symbol, high degree of shielding against field induction, minimum triboelectric charge, controlled discharge without spontaneous discharge; Electrostatic shielding: min. 10 nJ (Energy Test) ESD. Structure: multilayer, transparent, lead-free. Imprint: ESD warning symbol. Standards: EN61340-5-1, ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, EIA-625, MILHDBK-263, MIL-STD-1686, and EIA-583. Outer layer: electrically conductive polyester. Metalization: steam vapor aluminum. Inner layer: electrically conductive polyethylene. Surface resistance: 10^10 to 10^11 ohm.
Technical attributes (type, dimensions): 23.0.90508, 150 x 255 mm
Technical specifications
| Width | 152 mm | |
| Length | 254 mm | |
| Lock type | weldable |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39232100 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
