23090506 | ESD PROTECT
Shielding bag, 125 x 200 mm, inner metalization, weldable, 23.0.90506
Order No.: 19L2894
EAN: 4099891438692
MPN:
23090506
Unit Price (€ / pck.)
11.4240 € *
Available: 0 pck.
Leadtime: On Request **
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
1 pck.
11.4240 €
5 pck.
10.8290 €
*incl. VAT plus shipping costs
**Subject to prior sale

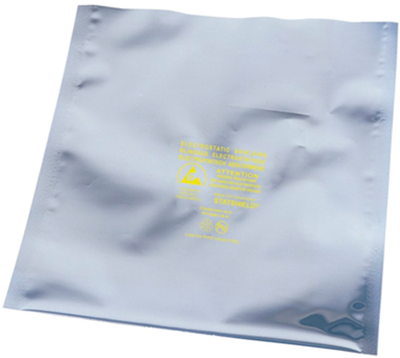

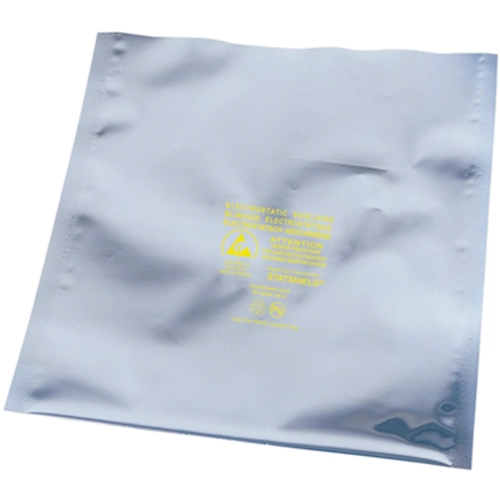

Shielding bags with inner metalization, weldable, type Charleswater Metal In.
With ESD warning symbol, high degree of shielding against field induction, minimum triboelectric charge, controlled discharge without spontaneous discharge; Electrostatic shielding: min. 10 nJ (Energy Test) ESD. Structure: multilayer, transparent, lead-free. Imprint: ESD warning symbol. Standards: EN61340-5-1, ANSI/ESD S20.20, ANSI/ESD S541, EIA 541, EIA-625, MILHDBK-263, MIL-STD-1686, and EIA-583. Outer layer: electrically conductive polyester. Metalization: steam vapor aluminum. Inner layer: electrically conductive polyethylene. Surface resistance: 10^10 to 10^11 ohm.
Technical attributes (type, dimensions): 23.0.90506, 125 x 200 mm
Technical specifications
| Width | 125 mm | |
| Length | 200 mm | |
| Lock type | weldable |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 39232100 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
