15113 | Eschenbach
Pocket magnifying glass with illumination, 3.5 1, 10
Active
Product by Eschenbach at Bürklin Elektronik

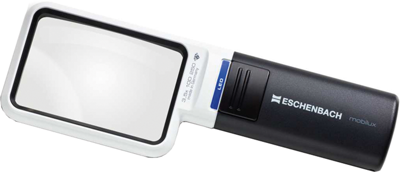

Pocket magnifiers with illumination, type Eschenbach mobilux LED.
With SMD LED and collimation lens, voltage control via step-up converter increased brightness and constant lighting. Add-on-on filter (for 2 different light hues). Supplied with 2 x AA batteries, pouch with belt loop.
Pocket magnifying glasses with illumination, type 15113.
Technical attributes (type, diopter, magnification factor, lens size): 15113, 10 dpt, factor 3.5, 75 x 50 mm
| Version | Hand magnifier | |
| diameter | 50 mm | |
| Suitable for | Mobilux series | |
| Weight | 0.049 kg | |
| Magnification | 4 |
| Country of origin | DE |
| Customs tariff number | 90138000 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
