0842CD | Ersa

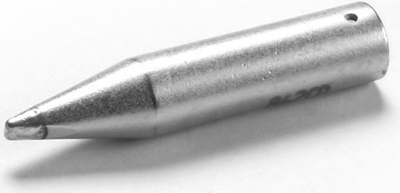

Soldering tip, Chisel shaped, Ø 8.5 mm, (T x L x W) 1 x 42.5 x 2.2 mm, 0842CD
Order No.: 09L1822
EAN: 4003008066838
MPN:
0842CD
As an alternative, we recommend the following item:
Soldering tip, Chisel shaped, Ø 8.5 mm, (T x L x W) 1 x 42.5 x 2.2 mm, 0842CD/SB
Order No.: 04L341
Manufacturer: Ersa
per pc. 13.9111 € *
*incl. VAT plus shipping costs
Soldering tip, 0842CD, Ersa
Permanent soldering tip, straight, chisel-shaped, 2.2 mm wide, with ERSADUR coating with increased service life for increased heat requirements.
Suitable for the ANANLOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000 soldering stations and the Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70 and Multi Sprint.
Features
- Active surfaces compacted
- Perfect heat transfer from the radiator
- Durable

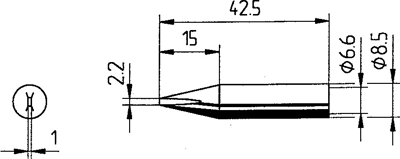

Technical specifications
| Version | soldering tip | |
| Width | 2.2 mm | |
| Thickness | 1 mm | |
| diameter | 8.5 mm | |
| Suitable for | ERGO TOOL, POWER TOOL, ANALOG 60/60 A, ANALOG 80/80 A, DIGITAL 80 A, ELS 8000/M/D, ERSA 15+/25+/35+, MS 6000, MS 8000/D, MULTI-PRO, MULTI-SPRINT, MULTI-TC/PTC 70, RDS 80 | |
| Length | 42.5 mm | |
| Power | 75 W | |
| Peak type | Chisel shaped |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85159080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
