0832YDLF | Ersa

Soldering tip, chisel shaped, Ø 8.5 mm, (T x L x W) 1 x 46 x 1.6 mm, 0832YDLF

Order No.: 09L4085
EAN: 4003008075250
MPN:
0832YDLF

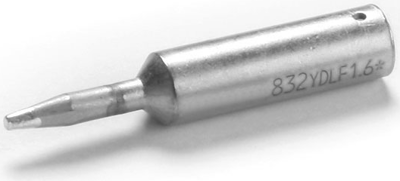

0832YDLF Ersa Soldering tips, desoldering tips and hot air nozzles Image 1

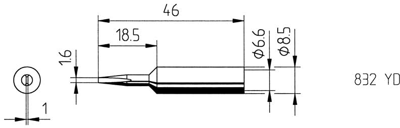

0832YDLF Ersa Soldering tips, desoldering tips and hot air nozzles Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:
Soldering tip, chisel shaped, Ø 8.5 mm, (T x L x W) 1 x 46 x 1.6 mm, 0832YD/SB
Soldering tip, chisel shaped, Ø 8.5 mm, (T x L x W) 1 x 46 x 1.6 mm, 0832YD/SB
Order No.: 04L336
Manufacturer: Ersa
per pc. 10.3173 € *

Technical attributes (Ersa type no., article name): 0832YD, Ersadur soldering tip, chisel, 1.6 mm

Technical specifications
Filter Property Value
Suitable for ERGO TOOL, POWER TOOL, ANALOG 60/60 A, ANALOG 80/80 A, DIGITAL 80 A, ELS 8000/M/D, ERSA 15+/25+/35+, MS 6000, MS 8000/D, MULTI-PRO, MULTI-SPRINT, MULTI-TC/PTC 70, RDS 80
Version soldering tip
Width 1.6 mm
Thickness 1 mm
Peak type chisel shaped
Length 46 mm
diameter 8.5 mm
Logistics
Property Value
Customs tariff number 85159080
Country of origin DE
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
