0612ADLF | Ersa

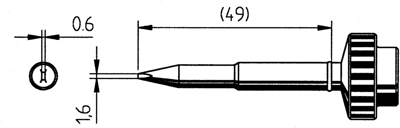

Soldering tip, chisel shaped, (T x L x W) 0.6 x 67 x 1.6 mm, 0612ADLF

Order No.: 09L9939
EAN: 4003008075540
MPN:
0612ADLF

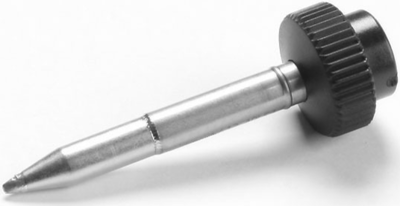

0612ADLF Ersa Soldering tips, desoldering tips and hot air nozzles Image 1
0612ADLF Ersa Soldering tips, desoldering tips and hot air nozzles Image 2
Image may differ
This item is no longer available.
As an alternative, we recommend the following item:

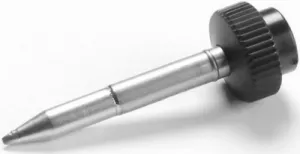

Soldering tip, chisel shaped, (T x L x W) 0.6 x 67 x 1.6 mm, 0612ADLF/SB
Soldering tip, chisel shaped, (T x L x W) 0.6 x 67 x 1.6 mm, 0612ADLF/SB
Order No.: 04L253
Manufacturer: Ersa
per pc. 27.7032 € *

Ersadur long-life Soldering tip for soldering stations Digital 2000A (Tech Tool), Digital 60 A and Micro-Con 60 iA, type Ersa 0612.

Type: 0612ADLF, chisel, 1.6 mm

Technical specifications
Filter Property Value
Width 1.6 mm
Version soldering tip
Length 67 mm
Suitable for CPS 60.10, DIGITAL 60 A, TECH TOOL
Thickness 0.6 mm
Peak type chisel shaped
Logistics
Property Value
Customs tariff number 85159080
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
