0172LD | Ersa

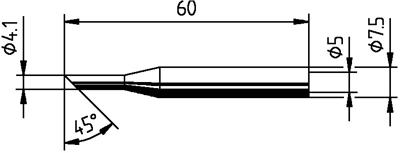

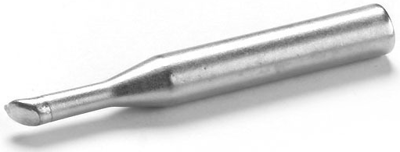

Soldering tip, pencil point, Ø 7.5 mm, (T x L x W) 4.1 x 60 x 4.1 mm, 0172LD
Order No.: 09L190
EAN: 4003008053388
MPN:
0172LD
This item is no longer available.
As an alternative, we recommend the following item:
Soldering tip, pencil point, Ø 7.5 mm, (T x L x W) 4.1 x 60 x 4.1 mm, 0172LD/SB
Order No.: 04L209
Manufacturer: Ersa
per pc. 9.8413 € *
Straight/thin one-sided beveled tip
Type: 0172LD, Ersadur soldering tip, beveled, 45°, 4.1 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Peak type | pencil point | |
| Suitable for | MULTITIP 25 | |
| diameter | 7.5 mm | |
| Width | 4.1 mm | |
| Version | soldering tip | |
| Thickness | 4.1 mm | |
| Length | 60 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85159080 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
