RDS80 | Ersa
1-Channel soldering station, Ersa RDS80, 80 W, 230 VAC
Order No.: 09L1816
EAN: 4003008065138
MPN:
RDS80
Unit Price (€ / pc.)
172.431 € *
Available: 60 pcs.
Leadtime: 1 Week **

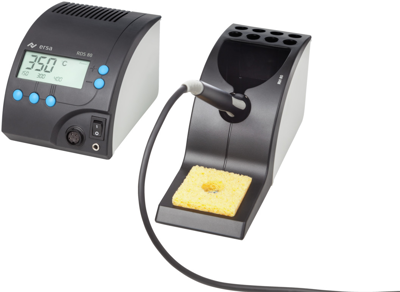

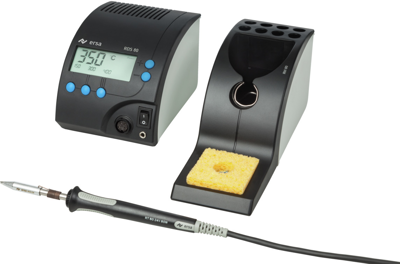

Soldering station, 0RDS80, Ersa
The ERSA RDS 80 soldering station is processor-controlled and offers direct selection of 3 programmable temperatures as well as other useful features such as standby and auto power-off functions and a large, easy-to-read LC display. The powerful PTC heating element of the RT 80 soldering iron (up to 290 W heat-up power) guarantees that the set temperature is reached quickly with a corresponding power reserve. Due to the large selection of ERSADUR soldering tips of the 832 and 842 series, almost all soldering tasks in the semi-professional field can be solved with the ERSA RDS 80.
Technical specifications
| Version | soldering station | |
| Power | 80 W | |
| Number of outputs | 1 | |
| min. operating temperature | 150 °C | |
| max. operating temperature | 450 °C | |
| ESD protection | Yes | |
| Connector | type E plug | |
| Voltage | 230 VAC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85151990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
