1-Channel soldering station, Ersa RDS80 115V, 80 W, 115 VAC
Order No.: 04L575
EAN: 4099891388324
MPN:
RDS80 115V
1RDS800000A67
Unit Price (€ / pc.)
232.4308 € *
Standard delivery time from the manufacturer is: 1 Week
Soldering station, 1RDS800000A67, Ersa

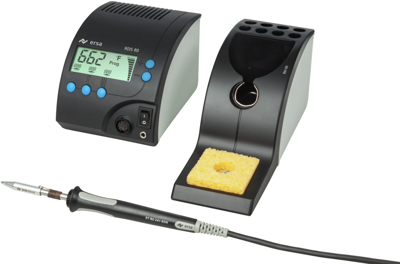

The ERSA RDS 80 soldering station is processor-controlled and offers direct selection of 3 programmable temperatures as well as other useful features such as standby and auto power-off functions and a large, easy-to-read LC display. The powerful PTC heating element of the RT 80 soldering iron (up to 290 W heat-up power) guarantees that the set temperature is reached quickly with a corresponding power reserve. Thanks to the large selection of ERSADUR 832 and 842 series soldering tips, the ERSA RDS 80 can be used to solve almost all soldering tasks in manufacturing, repair and laboratory applications.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 80 W | |
| max. operating temperature | 450 °C | |
| min. operating temperature | 150 °C | |
| Version | soldering station | |
| Number of outputs | 1 | |
| Voltage | 115 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85151990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
