0HR200-HP | Ersa

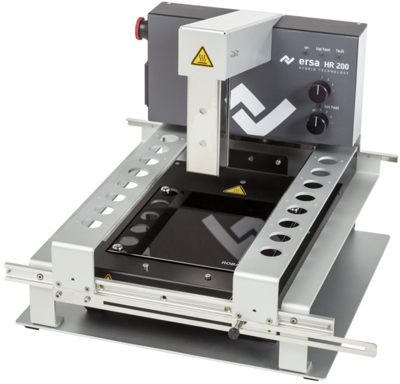

Rework station, HR200 Series, Ersa 0HR200-HP, 400 W, 230 VAC
Unit Price (€ / pc.)
4,510.10 € *
Standard delivery time from the manufacturer is: 1 Week
Hot plate, 0HR200-HP, Ersa
HR 200 hybrid rework system with foot switch, positioning laser,PCB holder and heating plate. Unpack, setup, solder! It´s as simple as that to rework a PCB nowadays. The Ersa HR 200 hybrid rework system contains a 400 W hybrid highpower Heating element to desolder and solder SMT components up to 30 x 30 mm. As an option, the system can operate a powerful 800 W infrared heating plate. This bottom heater guarantees ideal preheating of the assembly to rework. The operator selects the required power for top and bottom heating with a control knob, each with four levels. A foot switch activates the heating process. The operator’s hands are free to remove the desoldered component with appropriate tools.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rework station | |
| min. operating temperature | 40 °C | |
| max. operating temperature | 550 °C | |
| Power | 400 W | |
| ESD protection | Yes | |
| Voltage | 230 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85151990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
