0920BD | Ersa
Soldering iron MULTITIP Series, Ersa 0920BD, 25 W, 230 V
Unit Price (€ / pc.)
48.8495 € *
Available: 1 pcs.
Total Price:
48.85 € *
Price list
Quantity
Price per unit*
1 pcs.
48.8495 €
5 pcs.
45.9102 €
10 pcs.
43.9705 €
50 pcs.
42.2093 €
150 pcs.
40.4481 €
*incl. VAT plus shipping costs
Subject to prior sale
Soldering iron, 0920BD, Ersa

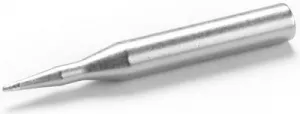

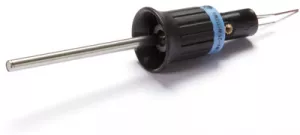

Multitip 25 ERSA Microsoldering iron The ERSA Multitip series covers a wide range of applications. It stands out by its low weight and compact design (short distance between soldering tip and the handle´s front part). The handle stays relatively cool while soldering. The Multitip is available for 15 and 25 W and suitable for both micro-soldering joints and medium-sized soldering, as on distributor strips. Long-life and industrially tested PTC heating elements and internally heated soldering tips provide high efficiency and fast heat supply. Complete with ERSADUR-Long-life soldering tip (0172BD) and holder (0A18).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Soldering tip series | 172 | |
| max. operating temperature | 450 °C | |
| Version | soldering iron | |
| Input voltage | 230 V | |
| Power | 25 W |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85151100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
