254415-E | ERNI

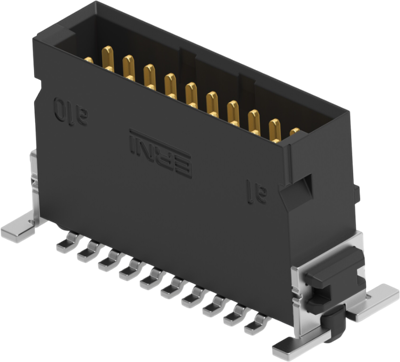

Pin header, 20 pole, pitch 1.27 mm, straight, black, 254415-E
Unit Price (€ / pc.)
4.2364 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4.24 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2364 €
10 pcs.
3.9270 €
25 pcs.
3.6652 €
50 pcs.
3.3320 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Header, 254415-E, ERNI
PCB Header, Vertical, Board-to-Board, 20 Position, 1.27 mm Centerline, Fully Shrouded, Gold (Au), Surface Mount, ERNI SMC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Pin number | 20 pole | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Version | pin header | |
| Contact type | pin | |
| Orientation | straight | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Colour | black | |
| Rated current | 1.7 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
