114712 | ERNI

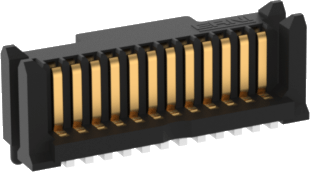

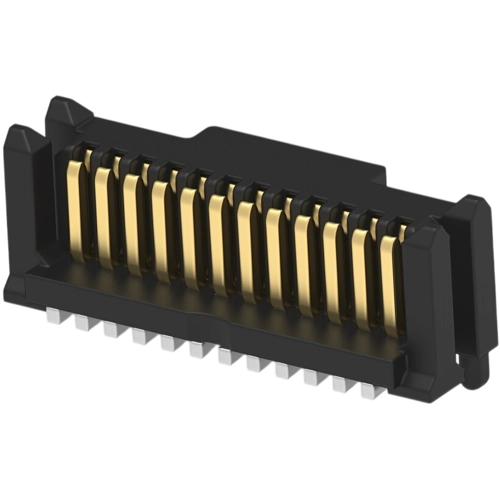

Pin header, 12 pole, pitch 0.8 mm, straight, black, 114712
Order No.: 53F6102
EAN: 4099889999204
MPN:
114712
Unit Price (€ / pc.)
2.2491 € *
Available: 521 pcs.
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0706 €
50 pcs.
1.9159 €
100 pcs.
1.7612 €
*incl. VAT plus shipping costs
Subject to prior sale
Single-row connectors with 0.8 mm grid, type ERNI MicroStac 1147.

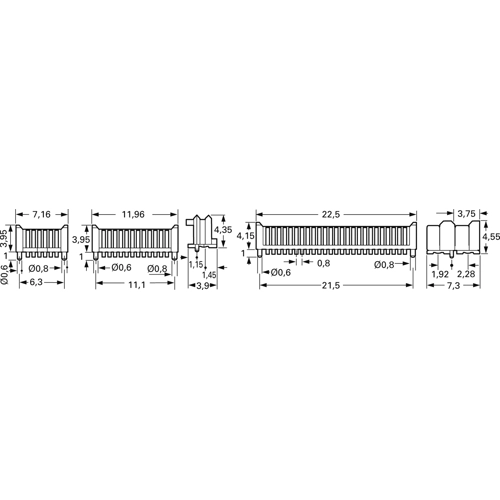

With SMD terminals and positioning pin based on a genderless design, so the plug and its mate are identical. Designed for high-speed automated assembly. The contact is designed to prevent tipping (both of its sides rest on the PCB); the very low weight; the gripping surface for the vacuum pipette is integrated in the insulator; Board-to-board height: 5.0 mm, maximum current loading: 1.2 A (20 °C), insulator: PA 46 UL 94 V-0, contact: copper alloy, surface: gold.
Technical attributes (type, number of poles): 114712, 12–pole
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Pin number | 12 pole | |
| Colour | black | |
| contact surface | gold-plated | |
| Connection | SMD | |
| Grid | 0.8 mm | |
| Rated current | 2.2 A | |
| Contact type | pin | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
| MSL | MSL 1 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
