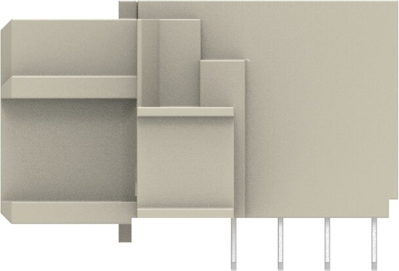

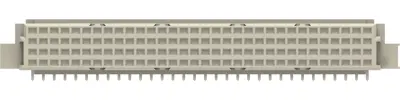

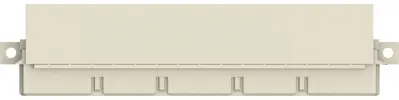

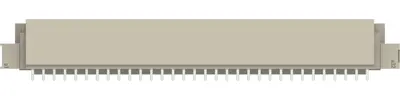

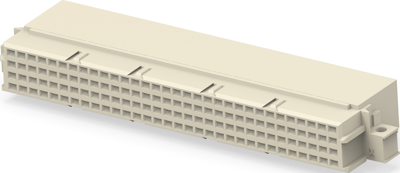

384850-E | ERNI
Female connector, type RD, 128 pole, pitch 2.54 mm, solder pin, angled, gold-plated, 384850-E
Order No.: 54F1547
MPN:
384850-E
Unit Price (€ / pc.)
20.8250 € *
Standard delivery time from the manufacturer is: 34 Weeks
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8250 €
2 pcs.
19.4803 €
5 pcs.
18.3022 €
10 pcs.
17.0170 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 384850-E, ERNI
Receptacle, Board-to-Board, 128 Position, 2.54 mm Centerline, Printed Circuit Board, 4 Row, Right Angle, 32 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Performance level | 2 | |
| Pin number | 128 pole | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Grid | 2.54 mm | |
| Design | RD | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
