384617-E | ERNI

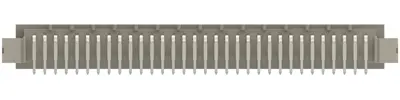

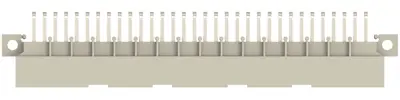

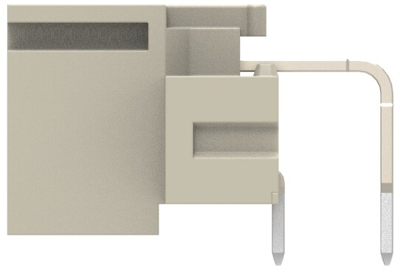

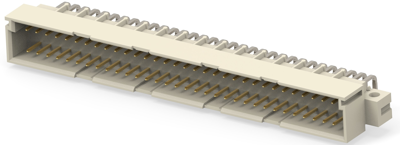

Male connector, type C, 64 pole, AC, pitch 2.54 mm, solder connection, angled, gold-plated, 384617-E
Order No.: 59F595
MPN:
384617-E
Unit Price (€ / pc.)
6.9853 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.99 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9853 €
5 pcs.
6.6283 €
10 pcs.
6.1999 €
25 pcs.
5.6525 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 384617-E, ERNI
Male connector, Board-to-Board, 64 Position, 2.54 mm Centerline, Printed circuit board, 3 Row, Right angle, 32 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Performance level | 2 | |
| Orientation | angled | |
| Design | C | |
| contact surface | gold-plated | |
| Contact row assignment | AC | |
| Pin number | 64 pole | |
| Contact type | pin | |
| Grid | 2.54 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
