384600 | ERNI

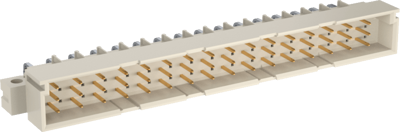

Male connector, type C, 48 pole, a-b-c, pitch 5.08 mm, solder pin, angled, gold-plated, 384600

Order No.: 54F1134
EAN: 4099891023003
MPN:
384600
384600 ERNI DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
6.8544 € *
Next delivery: 230 pcs. on 2025-11-14
Total Price:
6.85 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8544 €
10 pcs.
6.3665 €
50 pcs.
5.8548 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector DIN 41612, type ERNI STV.

Operating current +20/70 °C: 4.0/2.0 A. Test voltage: contact to contact 1000 V, contact/ground 1550 V.Leakage and air gap between contacts: 1.2 mm. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Gohm. Basic grid: 2.54 mm. Housing material: polybutylene terephthalate (PBT) flame-resistant to UL 94 V-0, or polycarbonate (PC) self-extinguishing to UL 94 V-1. Pulling force per contact: min. 0.15 N. Operating temperatures: - 60 to +125 °C. Certifications and standards: DIN 41612, IEC 603-2, UL, CSA. Type designations ending in VG correspond to VG 95324 requirements.

Male connector C, straight, 4.0 mm solder pins, type ERNI 374../384.

Contact assignment: 96-pole row a-b-c fully assembled, 64-pole rows a-c fully assembled, 48-pole rows a-b-c every second contact of each row assembled, 32-pole rows a-c every second contact assembled (for grid dimension 5.08 mm), solder pins for 1.0 mm bores.

Male connector type C, angled, solder pins, type 384.

Contact assignment: a-b-c every second contact of each row assembled. Solder pins for 1.0 mm bores.

Type: 384600, 48-pole, a-b-c, PBT, class 2

Technical specifications
Filter Property Value
Design C
Connection solder pin
Contact row assignment a-b-c
Grid 5.08 mm
Orientation angled
contact surface gold-plated
Performance level 2
Contact type pin
Pin number 48 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
