384047-E | ERNI

Male connector, type C, 64 pole, AC, pitch 2.54 mm, solder connection, angled, gold-plated, 384047-E

Order No.: 59F594
MPN:
384047-E

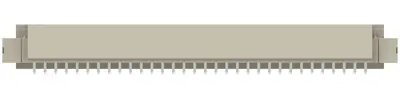

384047-E ERNI DIN PCB Connectors Image 1

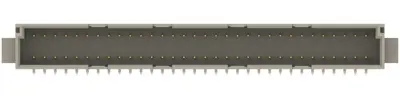

384047-E ERNI DIN PCB Connectors Image 2

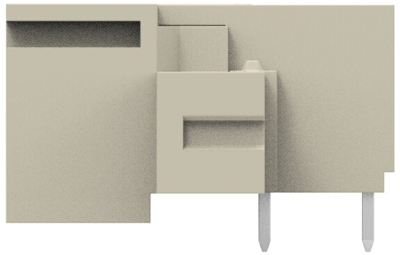

384047-E ERNI DIN PCB Connectors Image 3

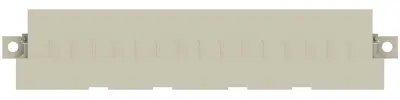

384047-E ERNI DIN PCB Connectors Image 4

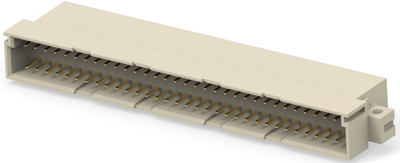

384047-E ERNI DIN PCB Connectors Image 5
Image may differ
Unit Price (€ / pc.)
6.9496 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
6.95 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9496 €
10 pcs.
6.4736 €
50 pcs.
5.9500 €
100 pcs.
5.4264 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 384047-E, ERNI

Male connector, Board-to-Board, 64 Position, 2.54 mm Centerline, Printed circuit board, 3 Row, Right angle, 32 Column, Eurocard Connectors.

Technical specifications
Design C
Grid 2.54 mm
Orientation angled
Pin number 64 pole
Connection solder connection
Contact row assignment AC
Contact type pin
Performance level 2
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
