374932-E | ERNI

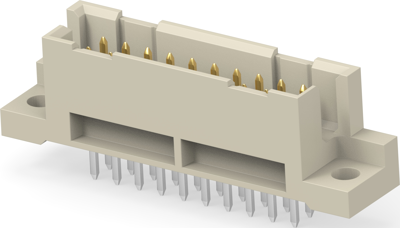

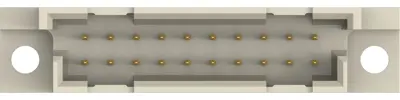

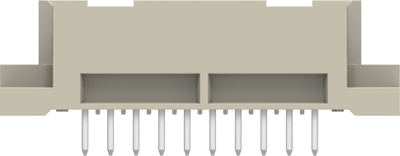

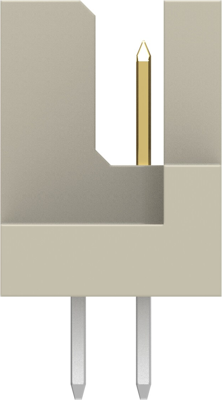

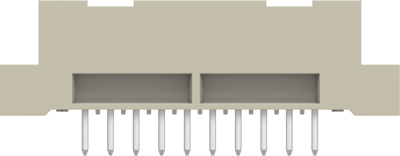

Male connector, type 3Q, 20 pole, a-b, pitch 2.54 mm, solder pin, straight, 374932-E
Order No.: 54F1563
MPN:
374932-E
Unit Price (€ / pc.)
5.6525 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
5.65 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6525 €
10 pcs.
5.2479 €
25 pcs.
4.9028 €
50 pcs.
4.4506 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 374932-E, ERNI
Plug, Board-to-Board, 20 Position, 2.54 mm Centerline, Printed Circuit Board, 2 Row, Vertical, 10 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Pin number | 20 pole | |
| Contact row assignment | a-b | |
| Contact type | pin | |
| Connection | solder pin | |
| Performance level | 2 | |
| Design | 3Q | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
