374199-E | ERNI
Male connector, type R, 96 pole, a-b-c, pitch 2.54 mm, solder pin, straight, 374199-E
Order No.: 54F1565
MPN:
374199-E
Unit Price (€ / pc.)
14.4585 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
14.46 € *
Price list
Quantity
Price per unit*
1 pcs.
14.4585 €
10 pcs.
13.4351 €
25 pcs.
12.5307 €
50 pcs.
11.4002 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 374199-E, ERNI

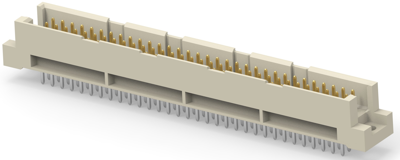

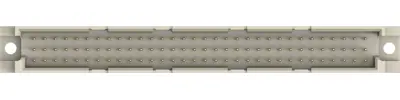

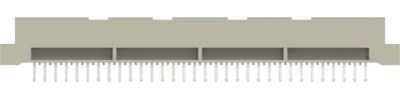

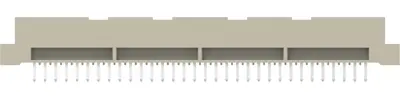

Plug, Board-to-Board, 96 Position, 2.54 mm Centerline, Printed Circuit Board, 3 Row, Vertical, 32 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Performance level | 1 | |
| Grid | 2.54 mm | |
| Contact row assignment | a-b-c | |
| Connection | solder pin | |
| Orientation | straight | |
| Contact type | pin | |
| Design | R | |
| Rated current | 1.5 A | |
| Pin number | 96 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
