374144-E | ERNI

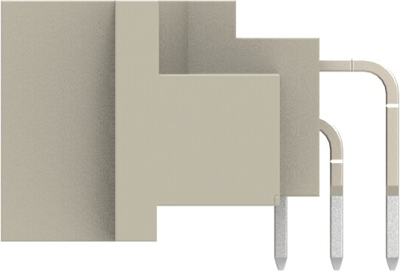

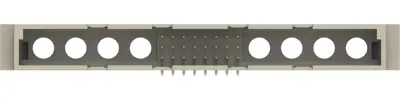

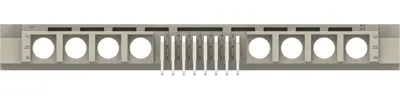

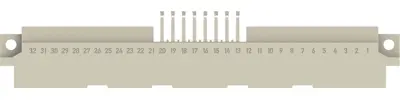

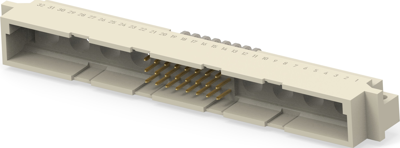

Male connector, type M, 24 pole, a-b-c, pitch 2.54 mm, solder pin, angled, gold-plated, 374144-E
Order No.: 54F1562
MPN:
374144-E
Unit Price (€ / pc.)
10.2578 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
10.26 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2578 €
10 pcs.
9.5200 €
25 pcs.
8.8893 €
50 pcs.
8.0801 €
*incl. VAT plus shipping costs
Subject to prior sale
Plug, 374144-E, ERNI
Plug, Board-to-Board, 24 Position, 2.54 mm Centerline, Printed Circuit Board, 3 Row, Right Angle, 8 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Performance level | 1 | |
| Grid | 2.54 mm | |
| Contact row assignment | a-b-c | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Orientation | angled | |
| Contact type | pin | |
| Design | M | |
| Pin number | 24 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
