364914 | ERNI

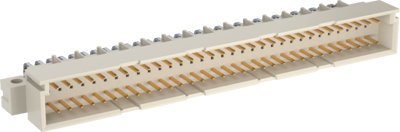

Male connector, type C, 64 pole, a-c, pitch 2.54 mm, solder pin, angled, gold-plated, 364914

Order No.: 54F1138
EAN: 4099891023027
MPN:
364914
364914 ERNI DIN PCB Connectors
Image may differ
Unit Price (€ / pc.)
6.5688 € *
Available: 500 pcs.
Total Price:
6.57 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5688 €
10 pcs.
6.1047 €
50 pcs.
5.6168 €
100 pcs.
5.1051 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector DIN 41612, type ERNI STV.

Operating current +20/70 °C: 4.0/2.0 A. Test voltage: contact to contact 1000 V, contact/ground 1550 V.Leakage and air gap between contacts: 1.2 mm. Contact resistance: max. 20 mohm. Insulation resistance: min. 1000 Gohm. Basic grid: 2.54 mm. Housing material: polybutylene terephthalate (PBT) flame-resistant to UL 94 V-0, or polycarbonate (PC) self-extinguishing to UL 94 V-1. Pulling force per contact: min. 0.15 N. Operating temperatures: - 60 to +125 °C. Certifications and standards: DIN 41612, IEC 603-2, UL, CSA. Type designations ending in VG correspond to VG 95324 requirements

Male connector type C, angled, solder pins, type 364..

Contact assignment: a-c fully assembled. Solder pins for 1.0 mm bores.

Type: 364914, 64-pole, a-c, PBT, class 2

Technical specifications
Design C
Contact type pin
Pin number 64 pole
Contact row assignment a-c
Grid 2.54 mm
Connection solder pin
Orientation angled
contact surface gold-plated
Rated current 2 A
Performance level 2
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
