294927-E | ERNI

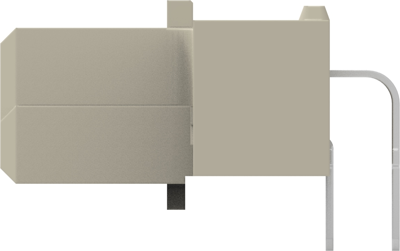

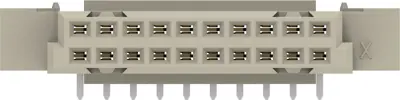

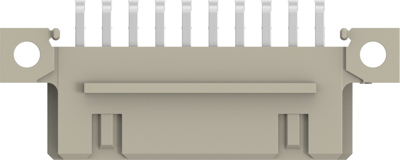

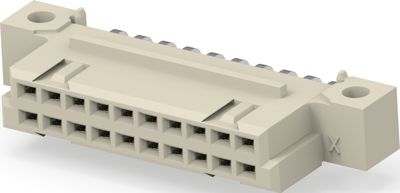

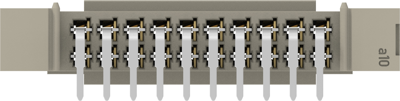

Female connector, type 3Q, 20 pole, a-b, pitch 2.54 mm, solder pin, angled, gold-plated, 294927-E
Order No.: 54F1546
MPN:
294927-E
Unit Price (€ / pc.)
3.9389 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
3.94 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9389 €
10 pcs.
3.6533 €
25 pcs.
3.4153 €
50 pcs.
3.1059 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 294927-E, ERNI
Receptacle, Board-to-Board, 20 Position, 2.54 mm Centerline, Printed Circuit Board, 2 Row, Right Angle, 10 Column, Eurocard Connectors.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Performance level | 2 | |
| Pin number | 20 pole | |
| contact surface | gold-plated | |
| Connection | solder pin | |
| Grid | 2.54 mm | |
| Design | 3Q | |
| Contact type | socket | |
| Contact row assignment | a-b |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
