284314 | ERNI

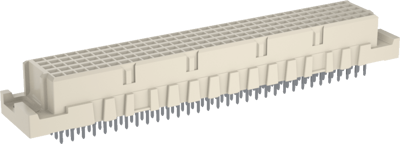

Female connector, type E, 160 pole, a-b-c-d-e, pitch 2.54 mm, solder pin, straight, gold-plated, 284314
Order No.: 54F1852
EAN: 4099891023492
MPN:
284314
Discontinued
Unit Price (€ / pc.)
9.8532 € *
Available: 1 pcs.
compliant with design E to DIN 41612, operational current at +20/70 °C 3.0/2.0 A. The other electrical and mechanical values are the same as the specifications for type E 80. Basic grid: 2.54 mm. Contact row assignment: a-b-c-d-e fully assembled, solder pins for 1.0 mm bores.
Female connector E160, straight, 4.0 mm solder pins, type 284.
Table index: type, number of poles, contact row assignment, housing material.
Technical attributes (type, number of poles, contact row assignment, housing material): 284314, 160-pole, a-b-c-d-e, PBT
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | E | |
| contact surface | gold-plated | |
| Grid | 2.54 mm | |
| Orientation | straight | |
| Contact row assignment | a-b-c-d-e | |
| Connection | solder pin | |
| Contact type | socket | |
| Pin number | 160 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
