183001 | ERNI

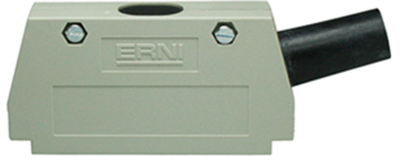

D-Sub connector housing, size: 1 (DE), straight 180°, cable Ø 6.5 mm, PC, gray, 183001
Order No.: 55F3950
EAN: 4099889812930
MPN:
183001
No longer available from manufacturer
Unit Price (€ / pc.)
8.0563 € *
Available: 834 pcs.
Total Price:
8.06 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0563 €
10 pcs.
7.0805 €
100 pcs.
6.1999 €
250 pcs.
5.9619 €
1000 pcs.
5.5930 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable housings for sub-D connectors, type ERNI KSG 183.
Twin-shell version for easy installation. Fully insulated, break-proof housing, with safe strain relief at the cable exit. Vibration-proof connection of the mating connector is achieved by installing a latch lever and bracket interlock which can be ordered separately; Note: 9 pole housings with one outlet, 15, 25, 37 and 50 pole housings with 3 outlets.
Technical attributes (type, for number of poles, dimensions A, B, C, D, E): 183001, 9-pole, A 25, B 25, C 45, D 49, E 35 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell size | 1 (DE) | |
| Cable Outlet | straight 180° | |
| Cable diameter | 6.5 mm | |
| Shell Material | PC | |
| Type of locking | snap lock | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | SI |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
